Description

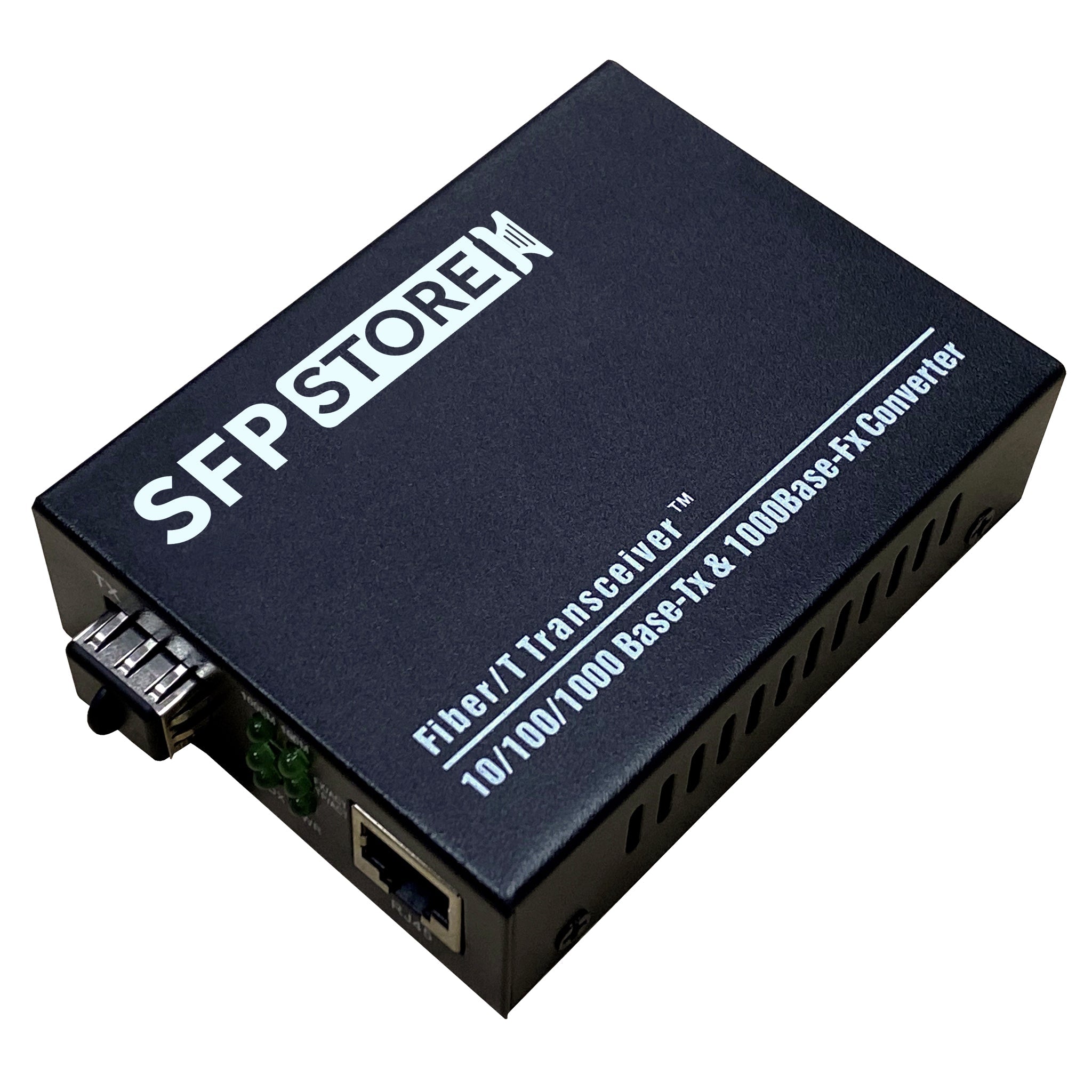

This fibre optic media converter is designed to convert the electrical signal from a twisted-pair 10/100/1000Base-TX cable to a 1000Base-FX fibre optic cable via an SFP module.
When using this media converter, the transmission distance can be extended from 100m via copper cables up to 120km via fibre optic cable.
The converter is able to auto-sense the data rate as well as full-duplex and half-duplex sensing. It supports VLAN / VoIP / QoS packets, flow control and STP to form a redundant network as well as auto MDIX.
This product also boasts extremely low power consumption, low heat and stable performance.
It can be mounted in a variety of ways, including desktop mounting, wall-mounting, chassis and DIN-rail.
Note: comes with power supply with UK plug.
Specification
| Managed | Unmanaged |
| Data Rate | 10/100/1000Mbps |
| Wavelength | As Per Module Spec. |
| Fibre Interface | 1 x 1000Base-FX |
| UTP Interface | 1 x 10/100/1000Base-TX |
| Connector | SFP |
| Form Factor | Standalone |
| Standards | IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX/FX Fast Ethernet |
| Flow Control | Full Duplex: Flow Control Half Duplex: Back Pressure |
| Copper Port | Number of Ports: 1 Connector: RJ45 Distance: 100m |
| Fibre Port | Number of Ports: 1 |
| LED Indicators | PWR - Power Supply FL/A - Optical Link / Action FDX - Full Duplex TL/A - Twister Pairs Link / Action 100 - Transmission Rate of Twisted Pairs FX - 100M Transmission Rate of Fibre |
| Power Supply | PoE |
| Power Consumption | <3W |
| Operating Temperature | -10 - 55C |
| Storage Temperature | -40 - 85C |
| Dimensions | External: 94mm x 70mm x 26mm Internal: 140mm x 110mm x 30mm |
| Weight | External: 0.4kg Internal: 0.5kg |
